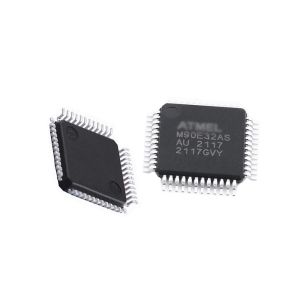

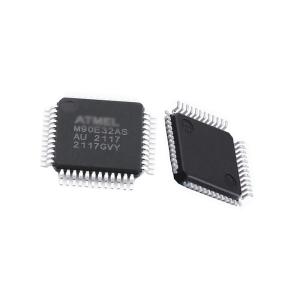

    ATM90E32AS-AU-R TQFP-48 Analog Front End AFE

    Ask Lasest Price
    Brand Name : Microchip Technology
    Model Number : ATM90E32AS-AU-R
    Price : RFQ
    Payment Terms : T/T, Western Union, escrow, Paypal, Visa, MoneyGram
    Supply Ability : RFQ
    Delivery Time : Immediately
    • Product Details
    • Company Profile

    ATM90E32AS-AU-R TQFP-48 Analog Front End AFE

    PCB Pluggable Connector ATM90E32AS-AU-R TQFP-48 Analog Front End - AFE


    Product Description:

    The M90E32AS is a poly-phase high performance wide-dynamic range metering IC. The M90E32AS incorporates 6 independent 2nd order sigma-delta ADCs, which could be employed in three voltage channels (phase A, B and C) and three current channels (phase A, B, C) in a typical three-phase four-wire system. The M90E32AS has an embedded DSP which executes calculation of active energy, reactive energy, apparent energy, fundamental and harmonic active energy over ADC signal and on-chip reference voltage. The DSP also calculates measurement parameters such as voltage and current RMS value as well as mean active/reactive/apparent power. A four-wire SPI interface is provided between the M90E32AS and the external microcontroller. The M90E32AS is suitable for poly-phase multi-function meters which could measure active/reactive/apparent energy and fundamental/harmonic energy either through four independent energy pulse outputs CF1/CF2/CF3/CF4 or through the corresponding registers. The ADC and auto-temperature compensation technology for reference voltage ensure the M90E32AS's long-term stability over variations in grid and ambient environment conditions.


    APPLICATION:

    • Poly-phase energy meters of class 0.2S, 0.5S and class 1 which are used in three-phase four-wire (3P4W, Y0) or three-phase three-wire (3P3W, Y or Δ) systems. • Power monitoring instruments which need to measure voltage, current, mean power, etc.

    Parameter Table:

    Product AttributeAttribute Value
    Manufacturer:Microchip
    Product Category:Analog Front End - AFE
    RoHS:Yes
    Type:Metering AFE
    Interface Type:Serial, SPI
    Minimum Operating Temperature:- 40 C
    Maximum Operating Temperature:+ 85 C
    Mounting Style:SMD/SMT
    Package / Case:TQFP-48
    Packaging:Reel
    Packaging:Cut Tape
    Packaging:MouseReel
    Brand:Microchip Technology
