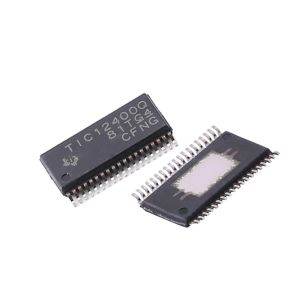

    TIC12400QDCPRQ1 HTSSOP-38 Interface ICs Integrated Circuits

    Ask Lasest Price
    Brand Name : TI
    Model Number : TIC12400QDCPRQ1
    Price : RFQ
    Payment Terms : T/T, Western Union, escrow, Paypal, Visa, MoneyGram
    Supply Ability : RFQ
    Delivery Time : Immediately
    • Product Details
    • Company Profile

    TIC12400QDCPRQ1 HTSSOP-38 Interface ICs Integrated Circuits

    IC Integrated Circuits TIC12400QDCPRQ1 HTSSOP-38 Interface ICs


    Product Description:

    The TIC12400-Q1 is an advanced Multiple Switch Detection Interface (MSDI) designed to detect external switch status in a 12-V automotive system. The TIC12400-Q1 features an integrated 10-bit ADC to monitor multi-position analog switches and a comparator to monitor digital switches independently of the MCU. Detection thresholds can be programmed for the ADC and the comparator to support various switch topologies and system non-idealities. The device monitors 24 direct switch inputs, with 10 inputs configurable to monitor switches connected to either ground or battery. 6 unique wetting current settings can be programmed for each input to support different application scenarios. The device supports wake-up operation on all switch inputs to eliminate the need to keep the MCU active continuously, thus reducing power consumption of the system. The TIC12400-Q1 also offers integrated fault detection, ESD protection, and diagnostic functions for improved system robustness. The TIC12400-Q1 supports 2 modes of operations: continuous and polling mode. In continuous mode, wetting current is supplied continuously. In polling mode, wetting current is turned on periodically to sample the input status based on a programmable timer, thus the system power consumption is significantly reduced.


    Application:

    • Body control module and gateway • Automotive lighting • Heating and cooling • Power seats • Mirrors


    Parameter Table:

    Product AttributeAttribute Value
    Manufacturer:Texas Instruments
    Product Category:Interface - Specialized
    RoHS:YES
    Type:Multiple Switch Detection Interface
    Operating Supply Current:5.6 mA
    Mounting Style:SMD/SMT
    Package / Case:HTSSOP-38
    Brand:Texas Instruments
    Operating Supply Voltage:4.5 V to 35 V
    Product Type:Interface - Specialized
    Series:TIC12400-Q1
    Factory Pack Quantity:2000
    Subcategory:Interface ICs

    FAQ:

    • Whats your MOQ?

    No MOQ needed, and if you buy more, will enjoy better prices.

    • Can i get a free sample?

    You can ask our staff for apply free samples.

    • What payment methods do you support?

    We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.

    • What about the shipment methods?

    We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.

    • How will you Guaranteed quality?

    Quality Warranty Period:12 Months.

    • Are the products tested before shipment?

    All products were tested before shipment, and the quality problems were negligible.

    • Do you provide BOM services?

    Yes, We provide one-stop purchase service, Please send us your Bom List
